Conveyorized Hemp Sorting, Drying, and Milling System

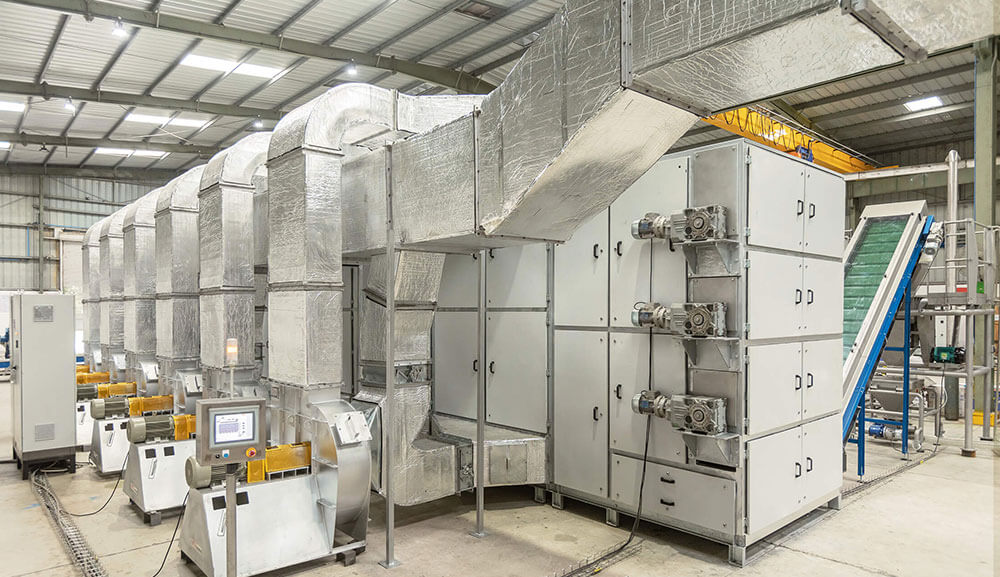

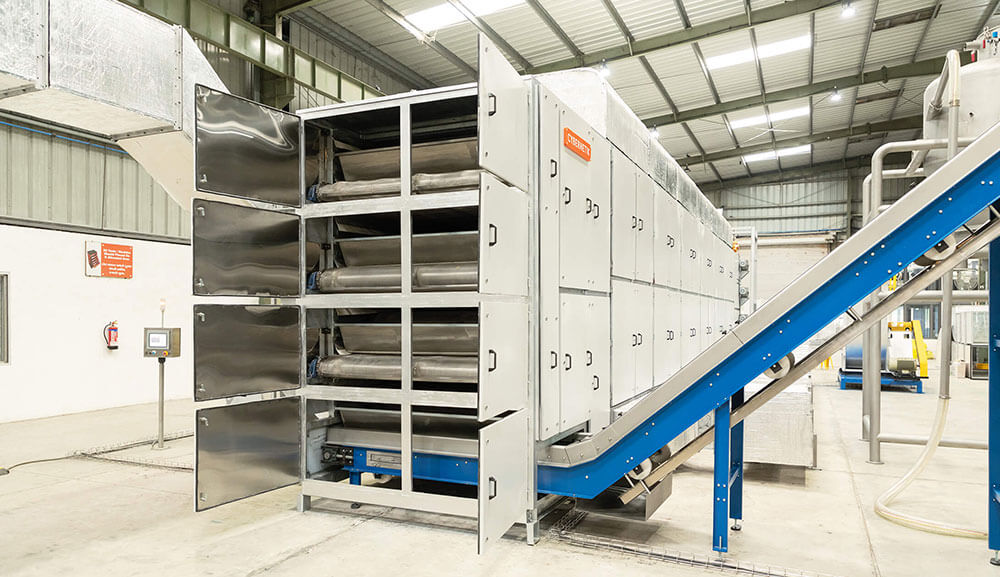

Integrated line for sorting, drying, milling & storage.
Brief :
Improve the yield of extraction via a scalable pre-processing line that completely automates the processes of drying, threshing, and storage of raw cannabis.
Industry :
Pharmaceuticals, Food
Schedule :
6 months
Customer Requirements :
- Automated line for drying, milling, and storage of raw material (hemp).
- High throughput and yield.
- Small particle size post milling.
- Low moisture content of raw material at output.
- Scope for scaling up capacity in the future.
- User friendly interface.
Buffalo Extraction Systems' Solution :
- CE-certified system is fully automatic (except for sorting operations).
- High throughput at 500 kg/hr.
- Moisture content of output at 6-8%
- System is scalable with 33% capacity addition possible.

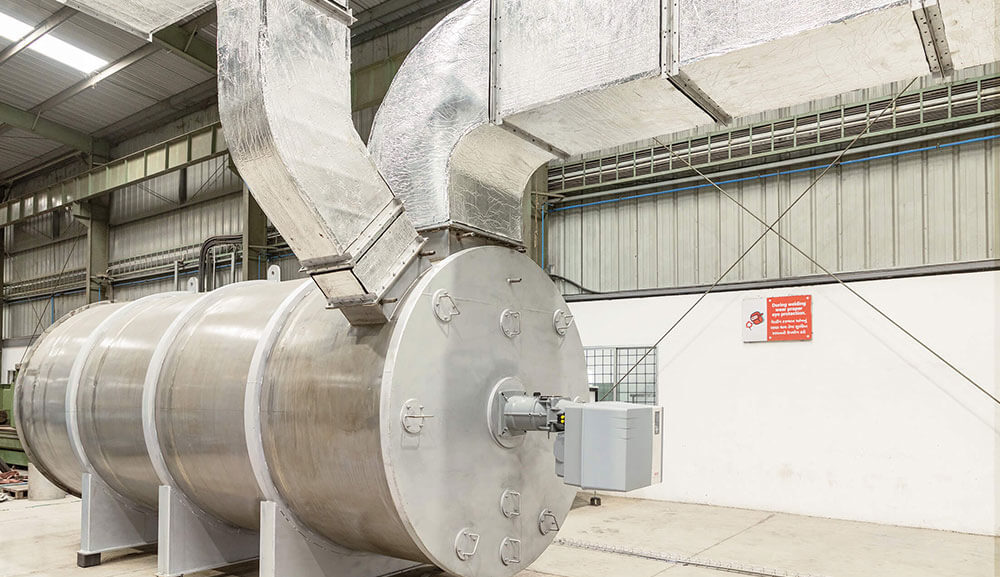

- Dryer can operate on CNG, LPG, or high speed diesel for fuel flexibility.
- SCADA offers close monitoring and control. The system uses minimal electricity.
Scope :

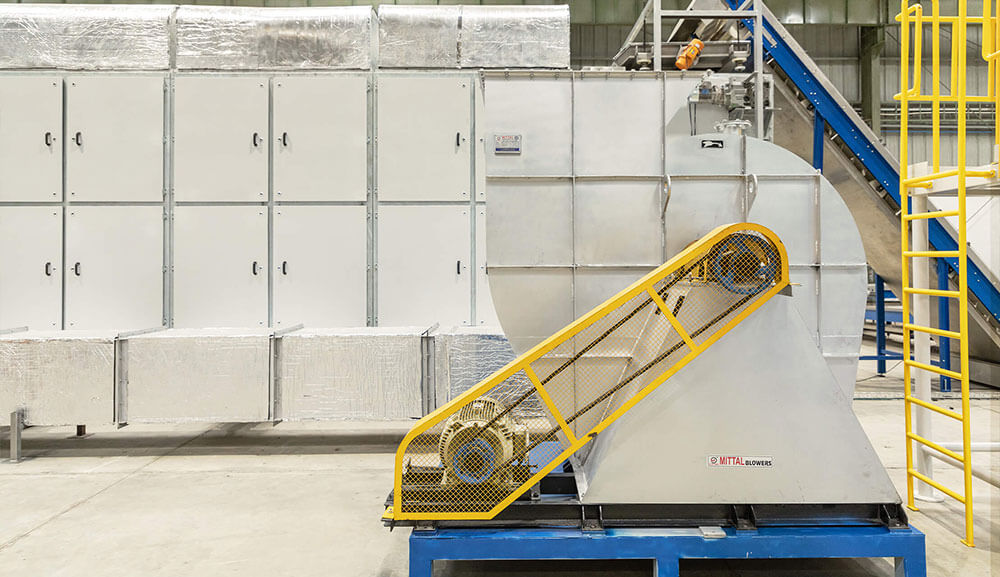

- 1 x Centrifugal Air Blower
- 1 x Grinder
- 1 x Pneumatic Conveying System
- 1 x Storage Silo
- 1 x Biomass Recovery System
- 1 x Manual Bagging System
- VFD-fired Induction Motors
- Doffers
- Hoppers

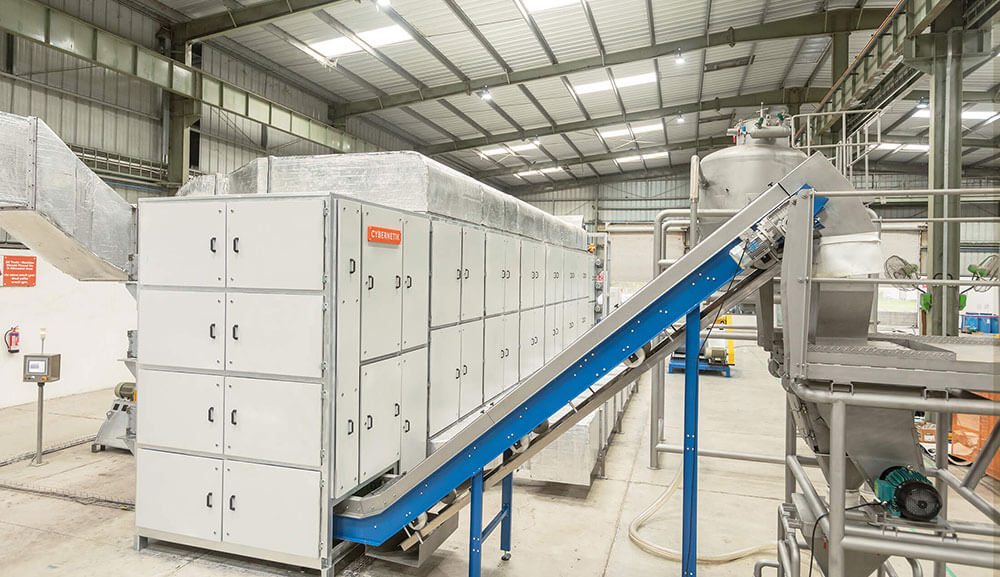

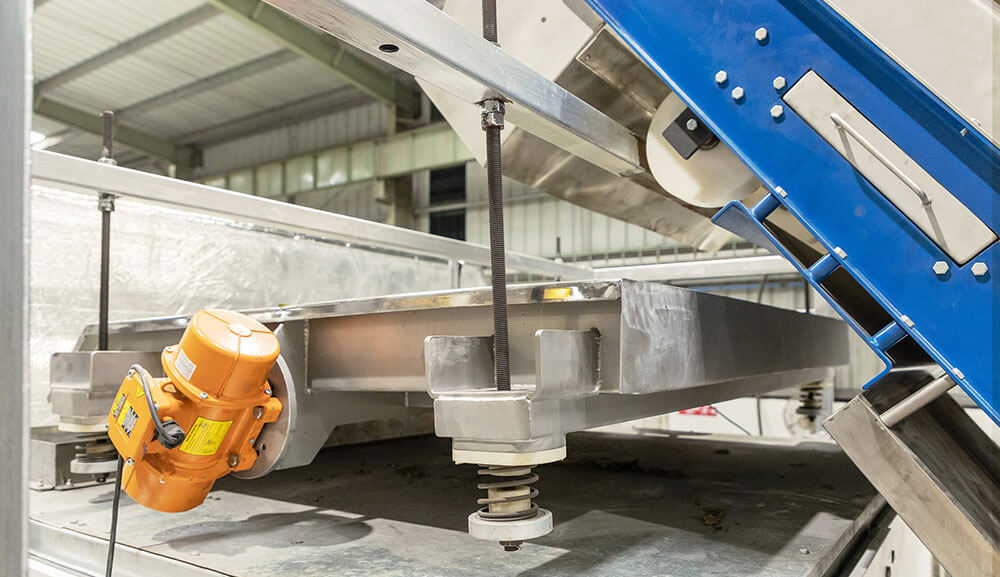

- Z Conveyors, Connecting Belt Conveyor, Flight Belt Conveyor, Trough Conveyor, & Vibratory Feeding Conveyors
