Supercritical CO2 Extraction Systems: Level 3

Buffalo Extraction System website element

Technical Specifications

Level 3
Single Extractor Volume (Litre) 100 / 200 / 500
Number of Extractors 2 or 3
Extractors Usage Single or Series
Pressure - Bar(PSI) 350 - 650 (5000 - 9500)
Temperature - deg C(deg F) 70 -110 (158 - 230)
CO2 recirculation Yes
Extractor changeover valves Automatic
CO2 Pump Flowrate (LPH) 600 - 3000
Co-Solvent Pump Yes
CO2 Feeding & Recovery System Included
Available Certifications CE / U / U2 / cGMP ASME / BPE / UL / SIL-3
Buffalo Extraction System website element

System Features

01 supercritical co2 extraction

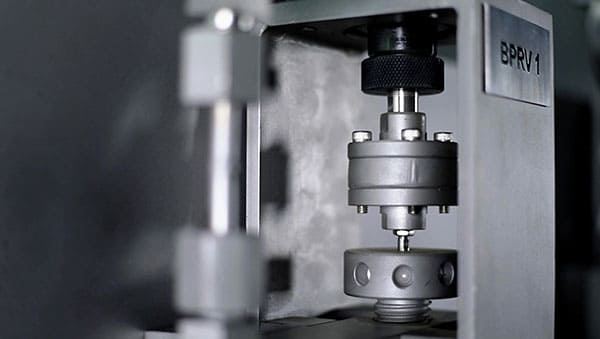

Precise Pressure Control that guarantees consistent solvent solubility for targeted extraction.

02 supercritical co2 extraction

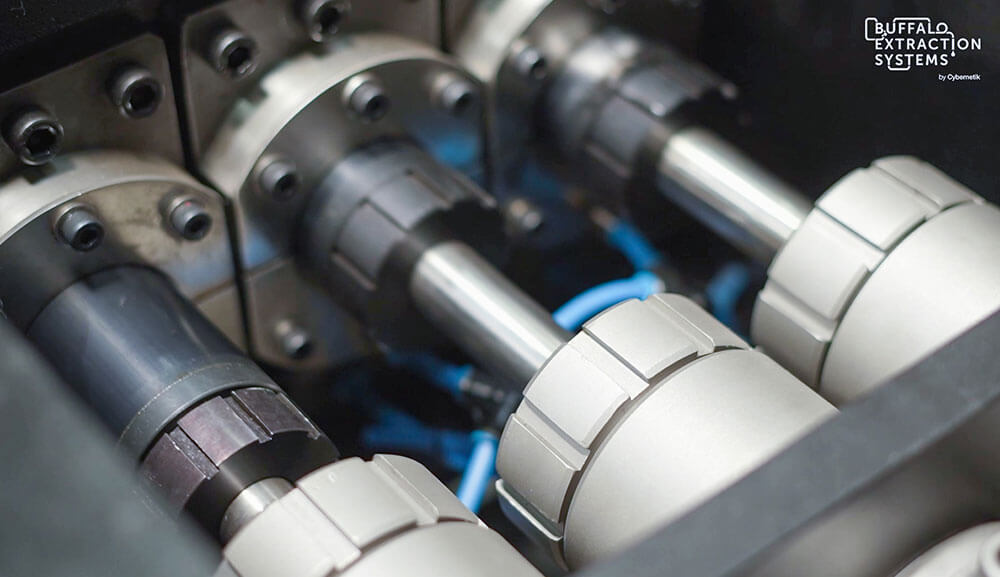

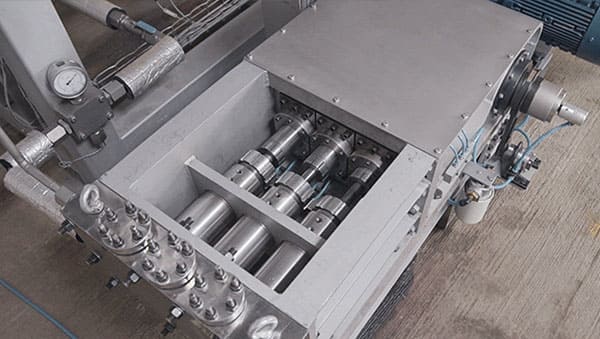

Consistent Flow Control of the pump speed delivers highest levels of extraction efficency.

03 supercritical co2 extraction

Superior Sealing Technology ensures minimum downtime and reduce maintenance.

04 supercritical co2 extraction

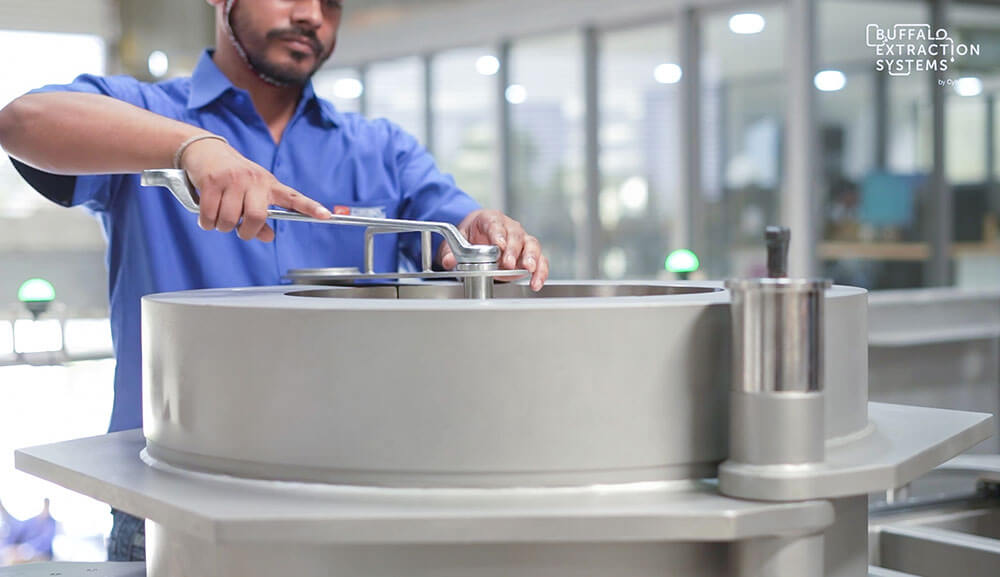

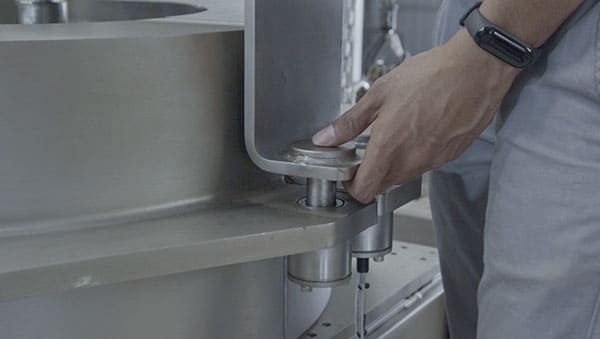

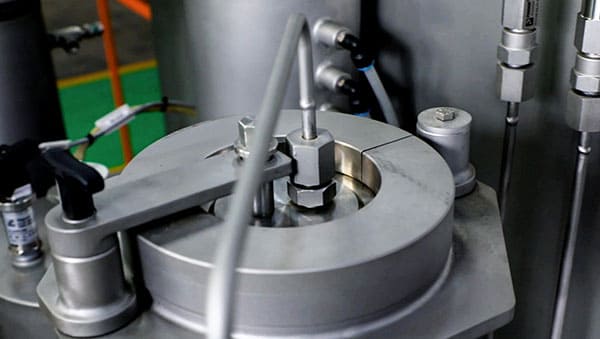

Unique Extractor Closure Design for rapid batch changeovers with minimal interruption.

05 supercritical co2 extraction

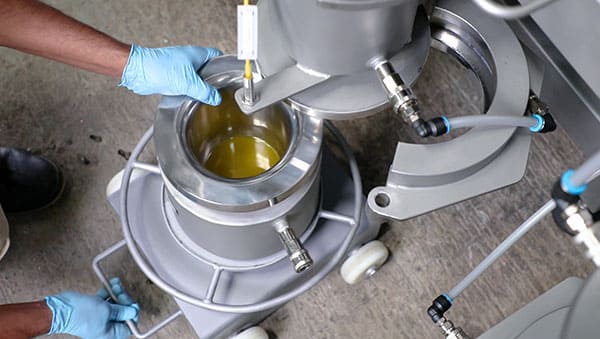

Special Seperator Design for easy collection of highly resinous and low-viscosity products.

06 supercritical co2 extraction

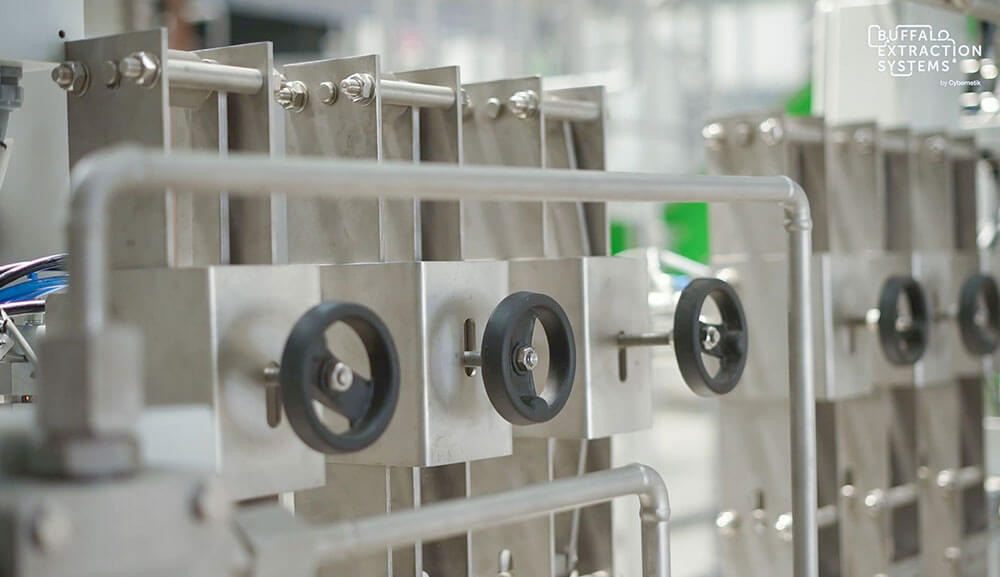

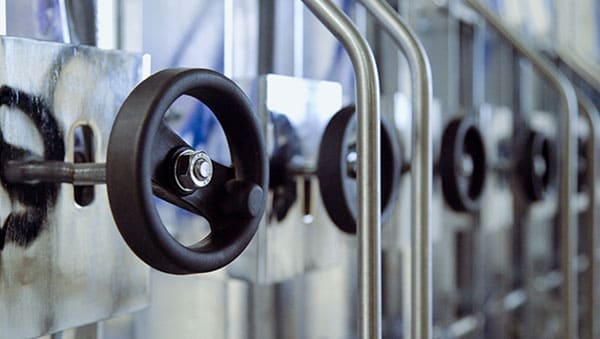

Proprietary Changeover Valves for quick changeover and isolations, even at high pressures.

07 supercritical co2 extraction

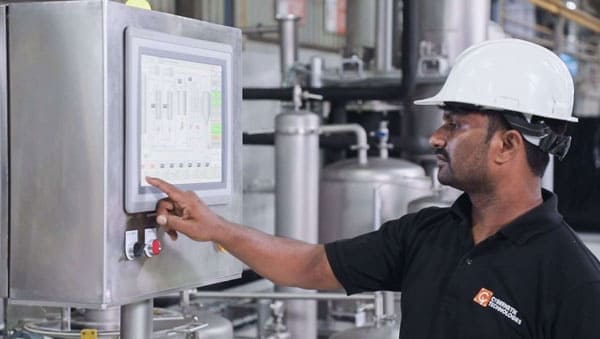

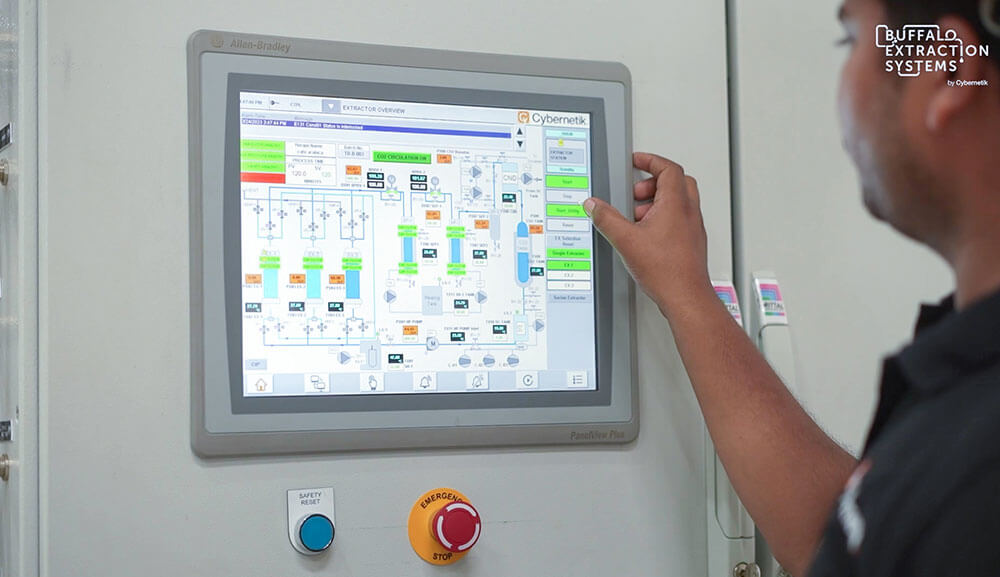

Intuitive Intelligence with proprietary Tablet APP enabling recipe-based control, remote monitoring and maintenance.

SCFE Level 3 - 50 kg Extractor Processing Capacity Per Batch
350 Bar (5000 PSI) Max. Extraction Pressure
70 °C (158 °F) Max. Extraction Temperature
Buffalo Extraction System website element
supercritical co2 extraction

Supercritical carbon dioxide is a fluid state of carbon dioxide where it is held at or above its critical temperature and critical pressure.

Carbon dioxide behaves as a gas at ambient temperature and pressure conditions and behaves as a solid when frozen. If the temperature and pressure are increased from ambient conditions to be above the critical point for CO2, it adopts properties between that of a gas and liquid.

More specifically, it behaves as a supercritical fluid above its critical temperature 31.10 °C and critical pressure of 73.9 bar expanding to fill its container like a gas but with a density like that of a liquid.

In this state, carbon dioxide exhibits solvating properties of a liquid and the diffusivity of a gas. This makes it a powerful medium for extraction of natural oils from organic materials.

supercritical co2 extraction

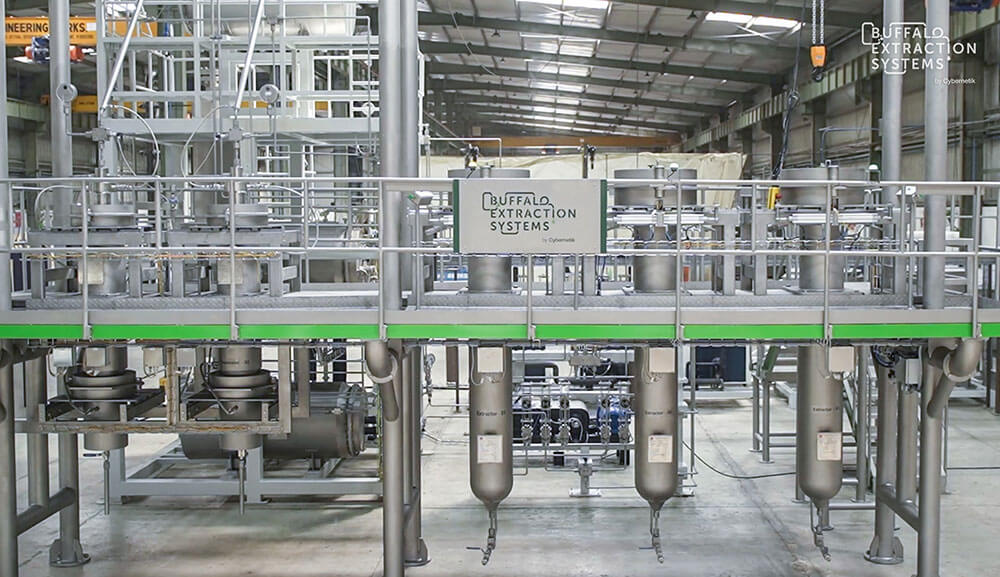

Supercritical Fluid Extraction of solids, is generally operated in batch mode on milled materials (or pellets, granulates), with food grade carbon dioxide as solvent. The equipment consists of two or more extractors operating above the CO2 critical pressure, and two separators where the extract and the CO2 are separated prior to the CO2 being recycled.

The supercritical CO2 Extraction process consists of first raising the temperature and pressure of the carbon dioxide gas till it reaches super critical state. This is done using a high pressure pump and a heater. The organic raw material is loaded into the extractors through which the super critical CO2 passes. Based on the components present in the raw materials, and the pressure-temperature settings, the supercritical CO2 extracts the oils from the raw materials and passes through a series of pressure regulator valves to enter the separators. The two separator pressures are controlled individually to separate the different components of the extract. Once the extracted oil is separated from the CO2 which escapes in the form of a gas, the oil is collected in collection vessels while the extract free Carbon dioxide is recycled by condensing and storing in the CO2 tank in the liquid form. This CO2 is then reused and the entire cycle is repeated for the duration of the batch.

Benefits

Buffalo Extraction System website element
Cost Efficient
Buffalo Extraction System website element
Faster Process
Buffalo Extraction System website element
100% Food Grade
Buffalo Extraction System website element
Better Stability in Formulation
Buffalo Extraction System website element
Non-Flammable
Buffalo Extraction System website element
Minimum Damage to Raw Material
Buffalo Extraction System website element
Anti-Hydrolysis
Buffalo Extraction System website element
Reusability of CO2
Buffalo Extraction System website element
Non-Toxic
Buffalo Extraction System website element
GMP Compliant
